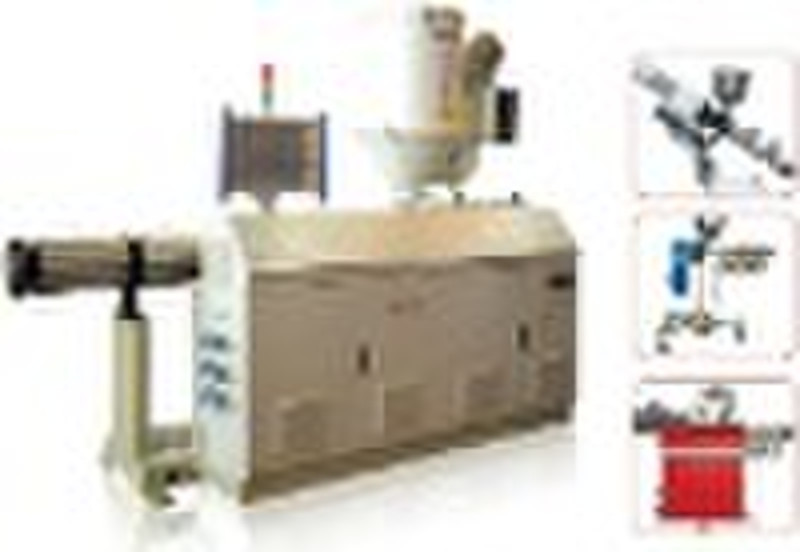

ZJSJ Single Screw Extruder

ZJSJ Single Screw Extruder (Single Screw Extruder,plastic single screw extruder machine,plastic machine)This kind of extruder is mainly used at PVC, PE, PP, PC, ABS and other thermoplastic material extrusion. Equipped with suitable die head,mould and downstream equipment, the extruder can produce many plastic products, such as pipe, plate, bar, film at etc. It also can be used at palletizing system. The extruder has advanced design, high output capacity, good plasticization, and low energy consumption. The extruder adopts hard surface gears for transmission. Such gearbox features low noise, table operation, large loading and long longevity. It has PLC/PCC control or ABB transducer, RKC temperature control. Model L/D Output Screw speedDriving power Center height (kg/h) (rpm) (kw) (mm) SJ25 25:1 5 20-1202.2 1000 SJ25 25:110 20-180 5.5 1000 SJ45 25-33:150-150 20-1507.5 -22 1000 SJ65 25-33:160-350 20-15022 -90 1000 SJ75 25-33:1200-450 20-15055 -110 1000 SJ90 25-33:1180-600 20-11037 -160 1000-1100 SJ12025-33:1320-100020-90 75 -280 1000-1250 SJ15025-33:1 400-1300 20-75 90 -280 1000-1300 SJ16025-33:1450-1000 20-90 110 -280 1000-1250 SJ17025-33:1 500-1300 20-75 110 -450 1000-1300 SJ18025-35:1 550-1000 20-90 110 -500 1000-1250 SJ22025-30:1 600-1300 20-75 125 -700 1000-1500
