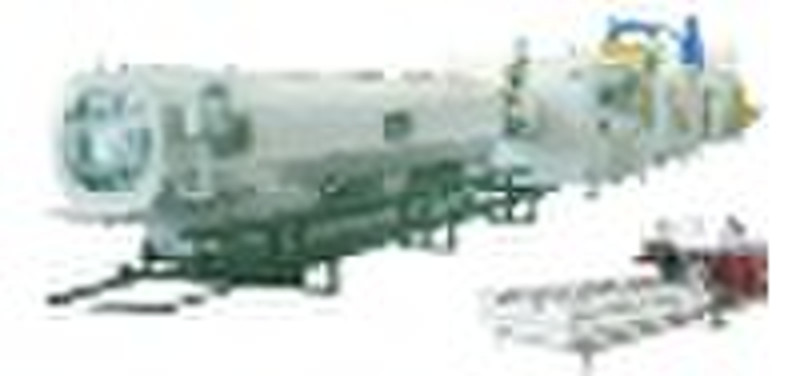

PVC Pipe Extruding Line

PVC pipe extruding line PVC pipe is easy processing and low-cost merit that is occupies a very large market share of the domestic and international. The pipe produced by this line can be widely used in water supply and drainage system. The maximum pipe diameter this line can produce is 800mm. This production line can be equipped with conical (or parallel) twin screw extruder. The haul-off machine has two-way, three-way, four-way, and six-way or eight-way type. The cutting machine has blade saw or planetary cutting method. Equipped with relative equipment, this line can produce inner spiral pipe, inner hollow pipe, or middle layer foamed pipe. The whole structure of new production lines, a high degree of automation, production is stable and reliable, in the leading domestic level. Model GF-63 GF-110 GF-160 GF-250 GF-400 GF-630 GF-800 Diameter Range(mm) 16-63 16-110 32-160 63-250 160-400 315-630 450-800 Haul off Caterpillar 2 2 2 3 4 6 8 Drawing Force(KN) 6 8 11 20 30 40 50 Drawing Speed(m/min) 15 12 9 8 4 2 2 Down Stream Power (KW) 14 14 14 21.5 41 56 64
